Architectural Laminated iav Chaw tsim tshuaj paus
High -Kev Ua Haujlwm Zoo Kev Nyab Xeeb iav Engineered rau Architecture thiab Sab hauv Kho kom zoo nkauj
MIGO iav yog cov chaw tsim khoom lag luamsiab -zoo kev nyab xeeb laminated iav, nrog ntau tshaj 10 xyoo ntawm kev xa tawm. Peb muab ib qho - nres iav kev daws teeb meem rauCov neeg tsim khoom lag luam thiab thaj chaw nyob, cov neeg cog lus, cov tsim tawm, thiab cov tsim sab hauv, xa cov khoom uas ua tau raws li cov qauv thoob ntiaj teb raukev nyab xeeb, clarity, durability, thiab customization.
Nrog rau kev txawj ntse txawj ntse, loj- teev muaj peev xwm tsim tau, thiab kev tswj hwm nruj, MIGO iav xa tawm ntau txhiab lub thawv ntawm cov khoom vaj tsev, kho kom zoo nkauj, thiab rooj tog iav txhua xyoo rau cov neeg koom tes thoob ntiaj teb-pab lawv tsim kom muaj kev nyab xeeb dua, niaj hnub, thiab muaj zog dua - qhov chaw zoo.

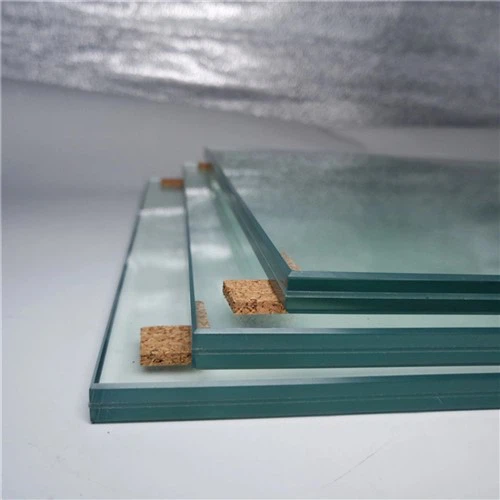

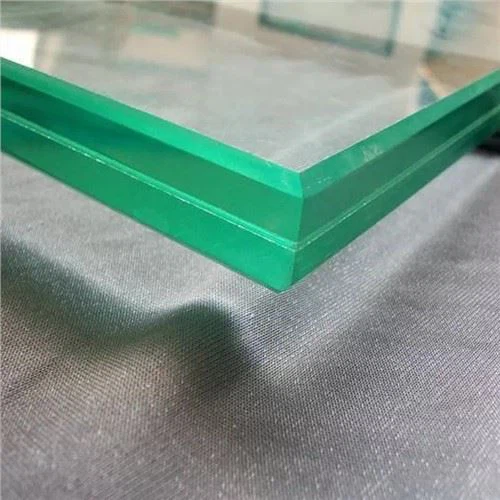

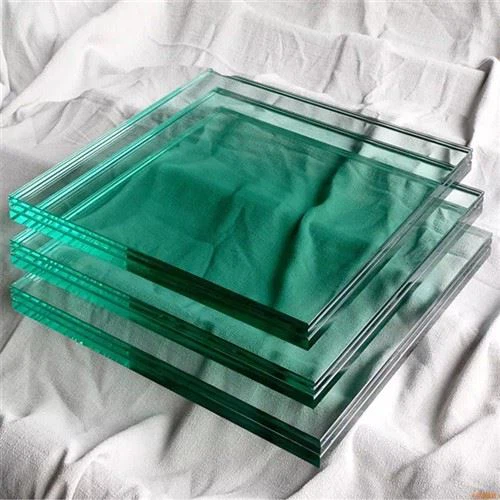

MIGO Laminated iav khoom muaj nyob rau hauv:
Laminated iav Manufacturing & Processing
PVB / EVA / SGP Interlayer · Flat / Bent Laminating · Custom Sizes

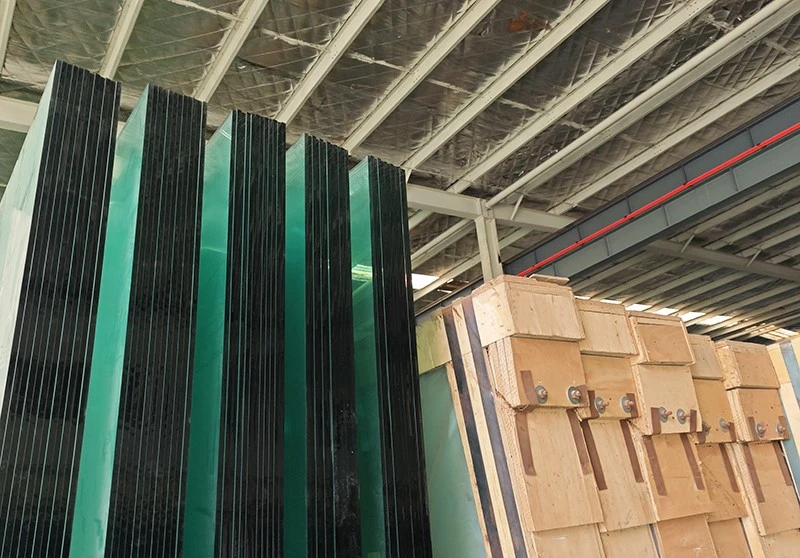

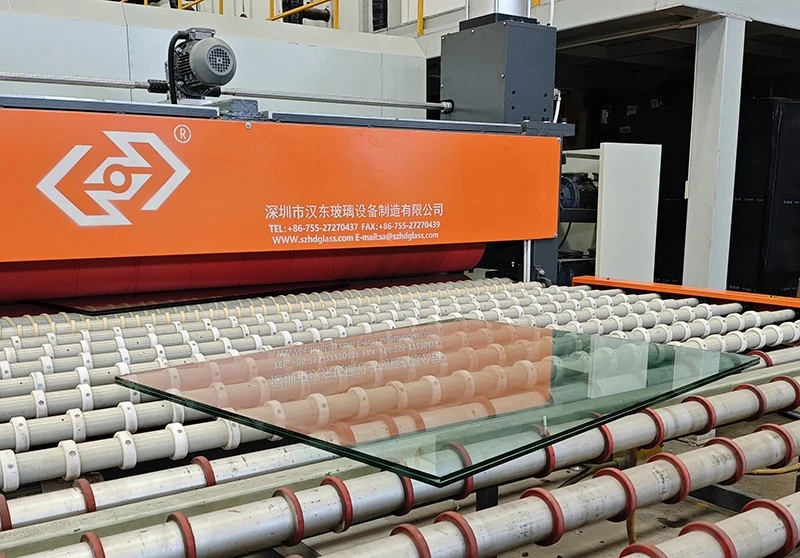

Peb ua haujlwm siab heev txiav, edging, drilling, tempering, laminating thiab IGU kab los xyuas kom meejruaj khov kev ua tau zoo, muaj ntawv pov thawj lub zog, thiab txhim khu kev qha export - ntim zoo. Nruab nrogFlat Tempering Rauv + Khoov Tempering Rauv, MIGO GLASS muab cov khoom siv tau yooj yim rau kev siv vaj tsev thiab kev lag luam.
|
Technical Capability Highlights:
2 hli+2mm: Max Loj yogmus txog 1830x1220 mm 3mm ib+3mm: Max Loj yogmus txog 3300x2140 mm 4mm ib+4mm - 12mm+12mm: Max Loj yogmus txog 2550x5100 mm Ua kom lub zog sib xws, kev nyab xeeb, thiab kev ua haujlwm kho qhov muag. |
Laminated iav Interlayer Performance
MIGO GLASS muab ntau yam ntawm interlayer PVB / EVA / SGP / Soundproof PVB
Yam Interlayer Koj Yuav Tsum Xaiv?
PVB → Qhov zoo tshaj plaws rau cov tsev uas xav tau kev nyab xeeb + kev ua haujlwm acoustic, piv txwv li, thaj chaw qhov rais, kev lag luam façades, iav qhov rooj, balconies.
EVA → Zoo tshaj plaws rau kev kho kom zoo nkauj sab hauv tsev, qhov chaw ntub dej, CNC- kos duab iav, iav hloov tau, qhov chaw da dej.
SGP → Qhov zoo tshaj plaws rau siab -cov ntaub ntawv muaj zog, xws li cov ntaub thaiv phab ntsa, skylights, iav pem teb, staircases, nag xob nag cua-cov qhov rais tiv taus.
| Performance Parameter | PVB Laminated iav | EVA Laminated iav | SGP Laminated iav (Ionoplast) |
|---|---|---|---|
| Hom khoom | Polyvinyl Butyral | Ethylene Vinyl Acetate | Ionoplast Interlayer (SentryGlas) |
| Kev Nyab Xeeb Kev Ua Haujlwm | ★★★★☆ | ★★★☆☆ | ★★★★★ (siab tshaj) |
| Impact Resistance | Zoo | Nruab nrab | Zoo heev (2 × muaj zog dua PVB) |
| Tear Strength | Nruab nrab | Tsawg-Medium | Siab heev (5 × PVB kua muag lub zog) |
| Lub zog muaj zog | Nruab nrab | Tsawg | Siab heev (kev siv cov qauv) |
| Hardness / Rigidity | Yooj yim | softer | nruj heev (txhawb cov qauv loads) |
| Lub teeb Transmittance | Siab | Siab | Siab heev |
| Huab cua Resistance | Zoo | Zoo heev (tiv thaiv -moisture) | Zoo heev |
| UV thaiv | >99% | >99% | >99% |
| Acoustic / Suab rwb thaiv tsev | Zoo heev | Nruab nrab | Nruab nrab |
| Moisture Resistance | Nruab nrab | Zoo heev | Zoo heev |
| Yellowing Resistance | Zoo | Zoo heev | Zoo heev |
| Delamination Risk | Nruab nrab | Tsawg | Tsawg heev |
| Kev yuav tsum tau ua | Autoclave yuav tsum tau | Tsis xav tau autoclave | Autoclave yuav tsum tau |
| Tus Nqi Theem | ★★★☆☆ | ★★☆☆☆ | ★★★★★ |
| Tej kev siv | Qhov rais, qhov rooj, balustrades, skylights | Sab hauv partitions, hniav iav, me facades | Cov qauv glazing, iav pem teb, siab -load façades, nag xob nag cua-resistant |
| Thickness Ntau | 0.38mm / 0.76mm / 1.14mm / 1.52mm | 0.38mm / 0.76mm / 1.14mm | 0.89mm / 1.52mm / 2.28mm |
| Lub zog tseem ceeb Feature | Sib npaug kev nyab xeeb thiab kev ua haujlwm acoustic | Moisture -resistant thiab ntau yam kev ua | Qhov kawg structural kev ua tau zoo |

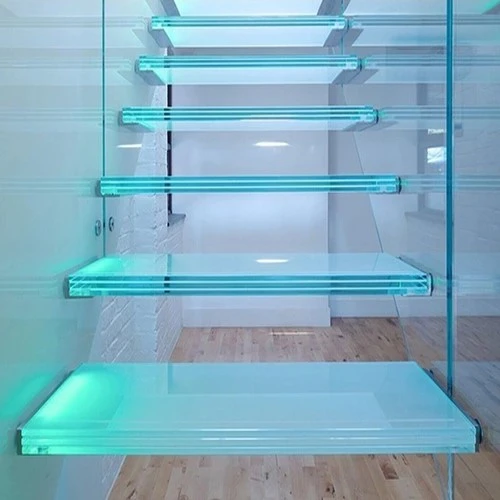

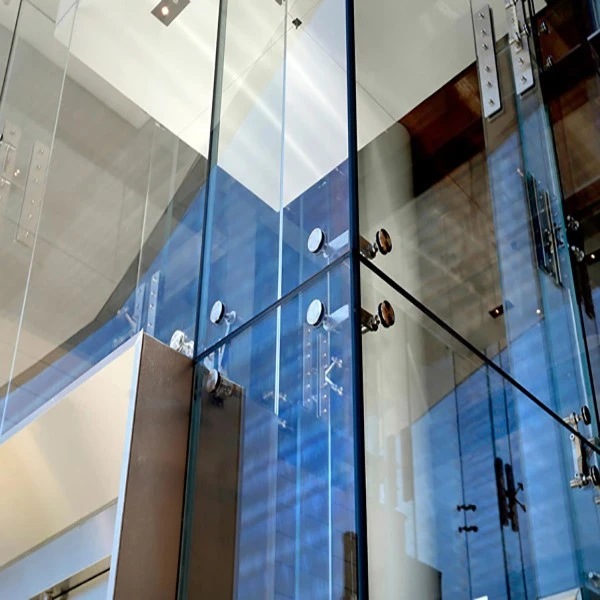

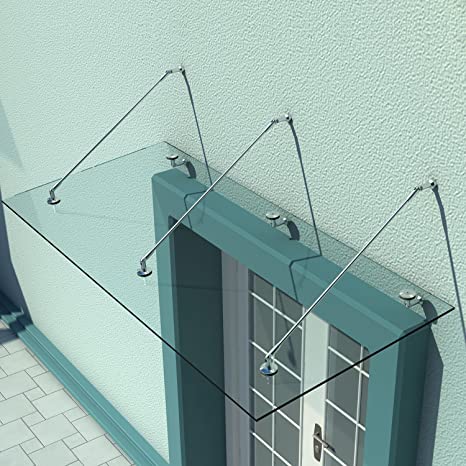

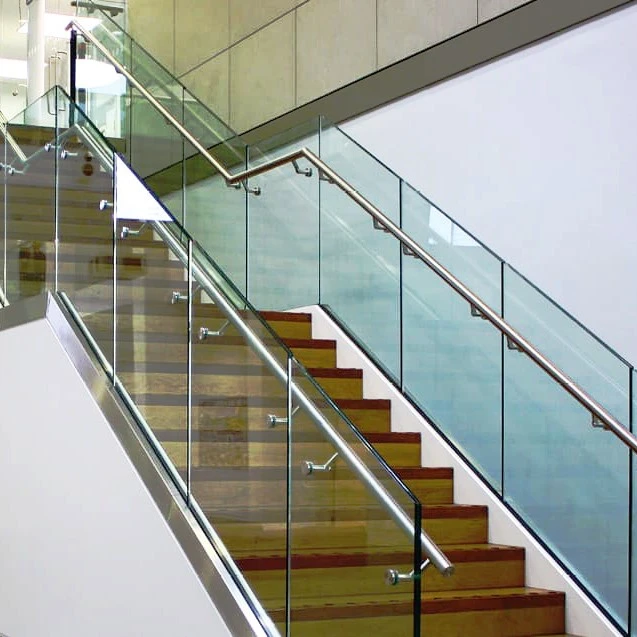

Daim ntawv thov teb ntawm Laminated iav
MIGO GLASS muab ntau yam khoom siv rau kev tsim kho thiab kev siv tshuab
MIGO GLASS Kev Tswj Xyuas Zoo & Kev Ntsuas Muaj Peev Xwm
Ntiaj teb no -Txoj Cai Tswjfwm Zoo rau Laminated Safety Glass
Raw Material Quality Inspection
Txij thaum pib, tag nrho cov iav panes thiab interlayer zaj duab xis cov ntaub ntawv (PVB, EVA, SGP) raug soj ntsuam nruj: xyuas cov npuas, suav nrog, khawb, nto flatness, thickness uniformity, optical clarity. Qhov no ua kom cov ntaub ntawv hauv paus ua tau raws li cov qauv siab ua ntej lamination.
Laminate Assembly & Tolerance Control
Thaum sib dhos thiab lamination, kev tswj nruj heev ntawm:
Interlayer alignment thiab offset tswj
Pane -rau- pane rau npe raug
Ntug sealing thiab ntug tiav zoo
Interlayer adhesion uniformity thiab de-airing / de- gassing txheej txheem los tiv thaiv npuas los yog delamination
Kev Ntsuam Xyuas Kev Ua Haujlwm & Kev Nyab Xeeb Kev Nyab Xeeb
Laminated iav panels tiav yog raug rau cov kev ntsuam xyuas tsis zoo, kev ntsuam xyuas kev nyab xeeb, kev ntsuas kev ua tau zoo acoustic (rau acoustic laminated iav), thiab cov qauv load / deflection kuaj raws li qhov xav tau los ntawm cov haujlwm.

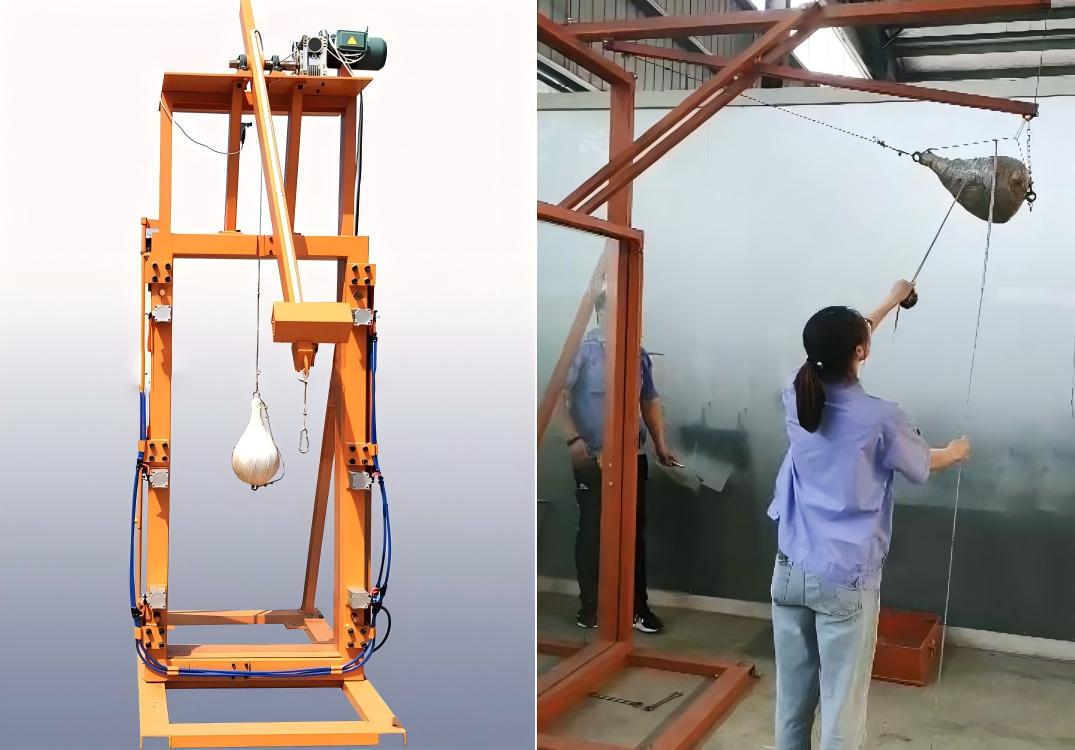

Rau kev txheeb xyuas kev nyab xeeb - xws li pendulum / drop test, ntug stability, interlayer adhesion check, thiab lwm yam. Peb xyuas kom meej ua raws li cov qauv thoob ntiaj teb loj thiab qhov project- cov kev cai tshwj xeeb.
International Certifications
Tag nrho MIGO GLASS laminated iav tau raug kuaj thiab muaj ntawv pov thawj los ntawm cov chaw kuaj pom zoo

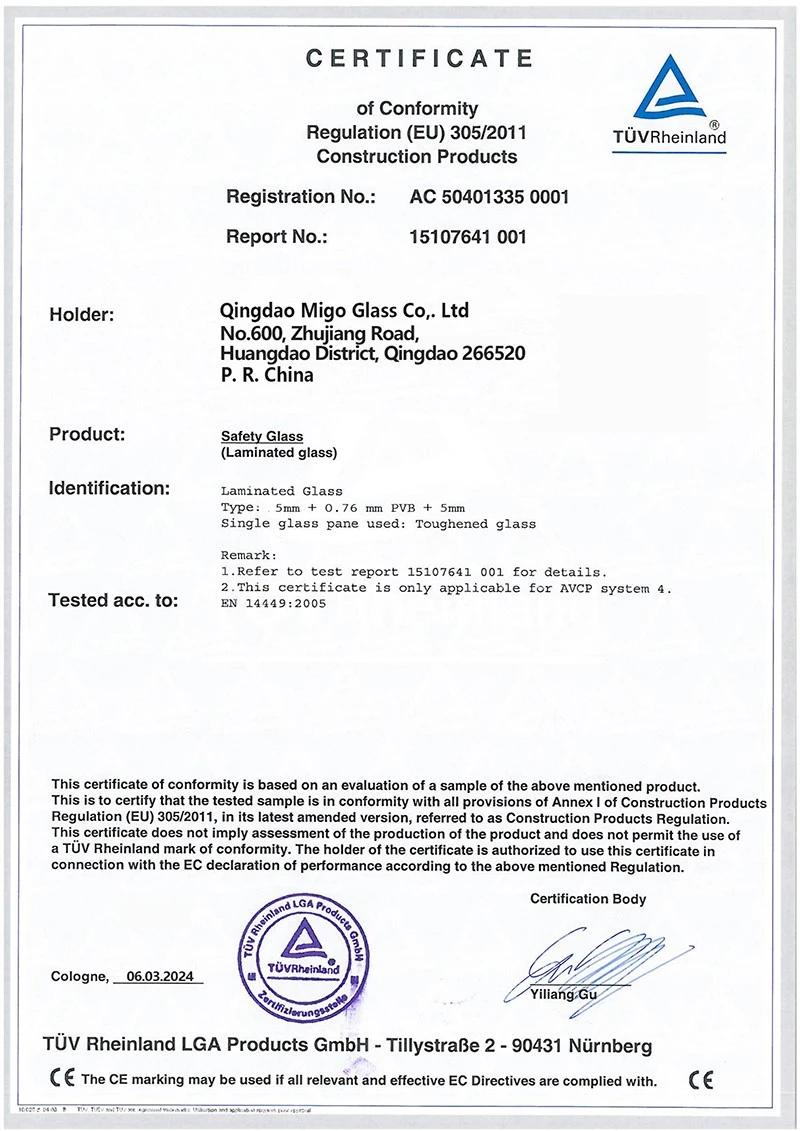

TUV Certificate
SGCC daim ntawv pov thawj
CE Daim Ntawv Pov Thawj
ISO9001 Daim ntawv pov thawj
ISO14001 Daim ntawv pov thawj
Qingdao Migo iav Co., Ltd. yog ib qho ntawm cov kws tshaj lij laminated iav manufacturers thiab lwm tus neeg nyob hauv Suav teb, tshwj xeeb hauv kev muab cov kev pabcuam zoo tshaj plaws rau cov neeg siv khoom thoob ntiaj teb. Peb sov siab txais tos koj rau cov lag luam wholesale siab heev laminated iav ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas. Tiv tauj peb kom paub ntau ntxiv txog tuam txhab.
